NEMODataTree

Each recipe in the NEMO Cookbook leverages the NEMODataTree object to store NEMO ocean model outputs and to help perform diagnostic calculations.

In this User Guide, we provide an introduction to the NEMODataTree, including examples using outputs from the NEMO version 5 AGRIF_DEMO and AMM12 reference configurations.

For further details on NEMODataTree constructors, properties and computation patterns, users are referred to the API documentation.

What is a DataTree?

---

Ocean model simulations produce large collections of datasets, including physics, biogeochemistry, and sea ice diagnostics, which are defined on different grids. Moreover, ocean models configuration often include nested domains, where datasets of model diagnostics are produced for each of the parent, child and grandchild domains.

Organising these gridded datasets into a single, interpretable data structure has traditionally been a major challenge for researchers when developing their data analysis workflows.

This is where the xarray.DataTree comes in.

The xarray.DataTree extends the more familiar collection of xarray data structures (e.g., xarray.Dataset) to allow hierarchical grouping of datasets, similar to a local file system. Each xarray.DataTree is composed of a hierarchy of nodes, each containing a separate xarray.Dataset.

DataTree('root')
└──global
    └── regional_nest

The root node sits at the top of the DataTree ('/') and each of its child nodes can have children (or sub-groups) of their own. In the example above, the root node has a single child node (global) storing the global domain outputs of an ocean model simulation. This in-turn has a single child node (regional_nest) storing the outputs of a regional nest inside the global domain.

We can hence describe each node in a DataTree in terms of the parent to which the node belongs, and its children - child nodes to which it is the parent. The root node is an important exception however, since it has no parent node.

To access a node in our DataTree, we use Python's standard dictionary syntax to define the path to the target node in the DataTree as follows:

dt['global/regional_nest']

We can then access the variables stored in the xarray.Dataset associated with a given node as follows:

ds['global/regional_nest']['var_name']

In summary, an xarray.DataTree can help ocean modellers organise complex outputs (nested domains, groups of variables) in a natural, hierarchical way by acting as a container for a collection of related xarray.Datasets.

What is a NEMODataTree? |

---

NEMODataTree is an extension of the xarray.DataTree structure designed to store NEMO model output datasets as nodes in a hierarchical tree.

NEMO Model Grid

The NEMO Ocean Engine (Madec et al., 2024) solves the Primitive Equations using the traditional, centred second-order finite difference approximation.

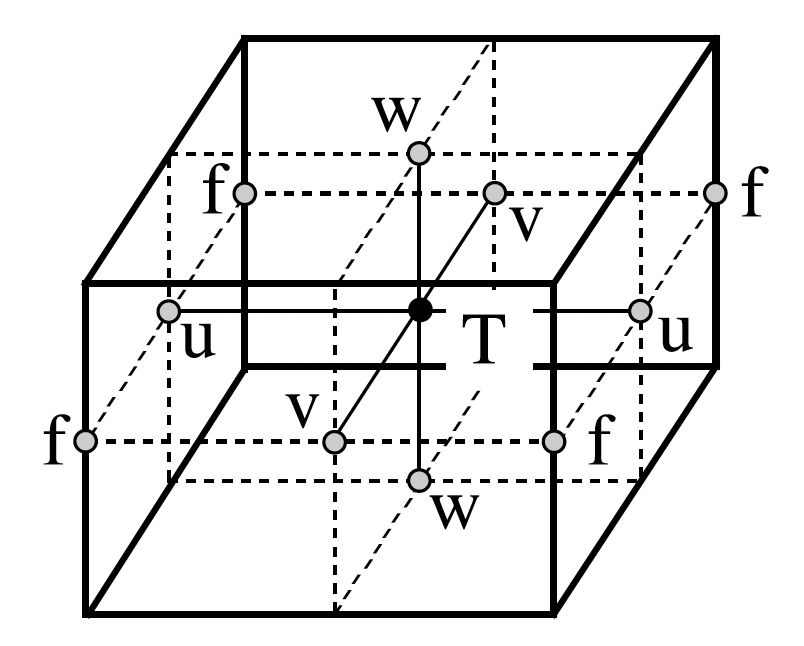

Variables are spatially discretised using a 3-dimensional Arakawa “C” grid (Mesinger and Arakawa, 1976), consisting of cells centred on scalar points T (e.g. temperature, salinity, density, and horizontal divergence).

Vector points (u, v, w) are defined at the centre of each cell face. The relative and planetary vorticity, ζ and f, are defined at f points, which are located at the centre of each vertical edge.

In NEMO, the ocean mesh (i.e. the position of all the scalar and vector points) is defined in terms of a set of orthogonal curvilinear grid indices (i, j, k), such that geographical coordinates are given as functions of these grid indices (i.e., λ(j, i), φ(j, i), z(k)).

All grid-points on the ocean mesh are located at integer or integer and a half values of (i, j, k) as shown below:

Grid Type	Grid Indices
T	(i, j, k)
U	(i + 1/2, j, k)
V	(i, j + 1/2, k)
W	(i, j, k + 1/2)
F	(i + 1/2, j + 1/2, k)

For each type of grid-point, three grid scale factors are defined...

• Horizontal scale factors (e1, e2)
• Vertical scale factor (e3)

...such that the volume of a given type of grid cell is given by (e1_k e2_k e3_k), where k is the grid point type. Similarly, the horizontal grid cell area is given by (e1_k e2_k).

For more information on the spatial discretisation of variables in NEMO, see Chapter 3 of the NEMO Reference Manual.

NEMO Outputs

Although many experienced researchers will be familiar with the typical output format of NEMO model simulations, we provide a brief summary below for new users.

NEMO model simulations write time-averaged diagnostics to output files in netCDF4 format using an external I/O library and server named XIOS.

Typically, separate netCDF files are produced at each time-averaging interval (e.g., monthly) for groups of variables located at the same type of grid points. This results in the following types of netCDF files:

• ...grid_T.nc scalar variables (e.g., conservative temperature & absolute salinity) defined at the centre of each model grid cell.

• ...grid_U.nc vector variables (e.g., zonal seawater velocity) defined at the centre of each eastern grid cell face.

• ...grid_V.nc vector variables (e.g., meridional seawater velocity) defined at the centre of each northern grid cell face.

• ...grid_W.nc vector variables (e.g., vertical seawater velocity) defined at the centre of each bottom grid cell face.

• ...grid_F.nc vector variables (e.g., relative vorticity) defined at the centre of each vertical edge.

Often global scalar diagnostics (e.g., global mean temperature) are also produced, resulting in a further type of netCDF file:

• ...scalar.nc 1-dimensional scalar variables calculated by aggregating a variable defined on the model T grid.

When the NEMO ocean engine is coupled to a sea ice model (e.g., SI3), netCDF files will also be produced for sea ice variables using the following suffix:

• ...icemod.nc sea ice variables (e.g., sea ice concetration) defined at the centre of each model grid cell.

Defining a Simple NEMODataTree

For a typical NEMO model configuration, consisting of a global parent domain coupled to a sea ice model, we can define a simple DataTree:

<xarray.DataTree 'nemo'>
Group: /
├── Group: /gridT
├── Group: /gridU
├── Group: /gridV
├── Group: /gridW
└── Group: /gridF

where the gridT child node contains time series of scalar variables stored in the ...grid_T.nc files in a single xarray.Dataset and so on.

Domain Variables

Importantly, a NEMODataTree does not need a domain node to store the grid scale factors and masks associated with each model domain.

Why?

This is because domain variables are assigned to their respective grid nodes during pre-processing (e.g., horizontal grid scale factors e1t and e2t are stored in gridT etc.).

Dimensions & Coordinates

Typically, the netCDF files output by NEMO model simulations have dimensions (depth{k}, y, x), where k is the grid point type.

During the construction of a NEMODataTree, these coordinate dimensions are transformed into the NEMO model grid indices (i, j, k) according to the Table included in the NEMO Model Grid section above. This has two important implications:

1. The xarray.Datasets stored in each grid node share the same coordinate dimension names (i, j, k), but are staggered according to where variables are position on the NEMO model grid.

2. All grid indices use Fortran (1-based) indexing consistent with their definition in the original NEMO model code.

In practice, this means that a variable defined at the first T-point will be at (i=1, j=1), whereas a variable located at the first U-point will be at (i=1.5, j=1). This approach was chosen to ensure users encounter alignment errors when attempting to calculate diagnostics using variables defined on different grids. Instead, scalar or vector variables should be interpolated onto the desired grid before computation.

A further practical implication is that users should always use .sel() to subset data variables according to their grid indices on the NEMO ocean mesh.

Summary

Below we summarise the steps required to define a NEMODataTree from a collection of output netCDF files:

Steps to Define a NEMODataTree

1. For each type of netCDF output, open all available files as a single xarray.Dataset using xarray.open_mfdataset().

2. Add domain variables stored in the domain_cfg.nc file to the each grid dataset (e.g., e1t, e2t are added to gridT).

3. Add / calculate masks for each grid type (e.g., tmask is added to gridT).

4. Redefine the dims and coords of each grid dataset to use i, j, k as used to define the semi-discrete equations in NEMO.

5. Assemble the xarray.DataTree using a dictionary of processed NEMO model grid datasets.

The steps above highlight that the NEMODataTree is simply a specific case of the more general xarray.DataTree structure.

Defining a Nested NEMODataTree

For a nested NEMO model configuration, including a parent, child and grandchild domain, we can define a more complex NEMODataTree:

<xarray.DataTree 'nemo'>
Group: /
├── Group: /gridT
|   └── Group: /gridU/1_gridU
|       └── Group: /gridU/1_gridU/2_gridU
├── Group: /gridU
|   └── Group: /gridU/1_gridU
|       └── Group: /gridU/1_gridU/2_gridU
├── Group: /gridV
|   └── Group: /gridV/1_gridV
|       └── Group: /gridV/1_gridV/2_gridV
├── Group: /gridW
|   └── Group: /gridW/1_gridW
|       └── Group: /gridW/1_gridW/2_gridW
└── Group: /gridF
    └── Group: /gridF/1_gridF
        └── Group: /gridF/1_gridF/2_gridF

where each parent grid node (e.g., gridT) has a corresponding child grid node (e.g., 1_gridT), which itself has a corresponding child (grandchild) node (e.g., 2_gridT).

Domain Variables

Nested child / grandchild domain variables are also assigned to their respective grid nodes during pre-processing (e.g., horizontal grid scale factors e1t and e2t are stored in gridT etc.).

Dimensions & Coordinates

To ensure that the dimensions of nested child / grandchild domains are distinct from their parent, a prefix is added to all grid indices and associated geographical coordinate variables.

The prefix corresponds to the unique domain number used to identify each child and grandchild domain during the construction the NEMODataTree. Hence, in the example above, the child grid node 1_gridT will have NEMO model grid indices (i1, j1, k1) and associated coordinates 1_glamt(j1, i1), 1_gphit(j1, i1) etc.

Summary

In summary, defining a NEMODataTree for a nested configuration includes two important additional steps:

Steps to Define a NEMODataTree

1. For each type of netCDF output, open all available files as a single xarray.Dataset using xarray.open_mfdataset().

2. Add domain variables stored in the domain_cfg.nc file to the each grid dataset (e.g., e1t, e2t are added to gridT).

3. Add / calculate masks for each grid type (e.g., tmask is added to gridT).

4. Redefine the dims and coords of each grid dataset to use i{dom}, j{dom}, k{dom} as used to define the semi-discrete equations in NEMO, where dom is the unique domain number.

5. Clip nested child domains to remove ghost points along the boundaries & add a mapping from the parent grid indices to the child grid indices to the coords.

6. Assemble dictionaries of processed NEMO model grid datasets for each of the parent, child and grandchild domains.

7. Assemble the xarray.DataTree using a nested dictionary of NEMO model domains.

Example NEMODataTrees

In this section, we demonstrate how to construct NEMODataTrees using global, regional, nested and coupled NEMO ocean sea-ice outputs.

Users can also explore the following examples using the example_nemodatatrees.ipynb Jupyter Notebook available in the recipes directory.

To get started, let's begin by importing the Python packages we'll be using:

import xarray as xr
import nemo_cookbook as nc
from nemo_cookbook import NEMODataTree

Global Ocean Sea-Ice Models:

---

1. AGRIF_DEMO

Let's start by creating a NEMODataTree using example outputs from the global AGRIF_DEMO NEMO reference configuration.

AGRIF_DEMO is based on the ORCA2_ICE_PISCES reference configuration with the inclusion of 3 online nested domains.

Here, we will only consider the 2° global parent domain.

Further information on this reference configuration can be found here.

---

NEMO Cookbook includes a selection of example NEMO model output datasets accessible via cloud object storage.

nemo_cookbook.examples.get_filepaths() is a convenience function used to download and generate local filepaths for an available NEMO reference configuration.

filepaths = nc.examples.get_filepaths("AGRIF_DEMO")

filepaths

The get_filepaths() function will download each of the files to your local machine, returning a dictionary of filepaths for the chosen configuration (AGRIF_DEMO):

{'domain_cfg.nc': '/Users/me/Library/Caches/nemo_cookbook/AGRIF_DEMO/domain_cfg.nc',
 '2_domain_cfg.nc': '/Users/me/Library/Caches/nemo_cookbook/AGRIF_DEMO/2_domain_cfg.nc',
 '3_domain_cfg.nc': '/Users/me/Library/Caches/nemo_cookbook/AGRIF_DEMO/3_domain_cfg.nc',
 'ORCA2_5d_00010101_00010110_grid_T.nc': '/Users/me/Library/Caches/nemo_cookbook/AGRIF_DEMO/ORCA2_5d_00010101_00010110_grid_T.nc',
 ...
 '3_Nordic_5d_00010101_00010110_icemod.nc': '/Users/me/Library/Caches/nemo_cookbook/AGRIF_DEMO/3_Nordic_5d_00010101_00010110_icemod.nc'
 }

Next, we need to define the paths dictionary, which contains the filepaths corresponding to our global parent domain.

We populate the parent dictionary with the filepaths to the domain_cfg and gridT/U/V/W netCDF files produced for the AGRIF_DEMO parent domain.

paths = {"parent": {
         "domain": filepaths["domain_cfg.nc"],
         "gridT": filepaths["ORCA2_5d_00010101_00010110_grid_T.nc"],
         "gridU": filepaths["ORCA2_5d_00010101_00010110_grid_U.nc"],
         "gridV": filepaths["ORCA2_5d_00010101_00010110_grid_V.nc"],
         "gridW": filepaths["ORCA2_5d_00010101_00010110_grid_W.nc"],
         "icemod": filepaths["ORCA2_5d_00010101_00010110_icemod.nc"]
        },
        }

We can construct a new NEMODataTree called nemo using the .from_paths() constructor.

Notice, that we also need to specify that our global parent domain is zonally periodic (iperio=True) and north folding on T-points (nftype = "T") rather than a closed (regional) domain.

nemo = NEMODataTree.from_paths(paths, iperio=True, nftype="T")

nemo

This returns the following xarray.DataTree, where we have truncated the outputs for improved readability:

<xarray.DataTree>
Group: /
│   Dimensions:               (time_counter: 2, axis_nbounds: 2, ncatice: 5)
│   ...
│
├── Group: /gridT
│       Dimensions:               (time_counter: 2, axis_nbounds: 2, j: 148, i: 180,
│                                  ncatice: 5, k: 31)
│       Coordinates:
│           time_centered         (time_counter) object 16B 0001-01-03 12:00:00 0001-...
│         * deptht                (k) float32 124B 5.0 15.0 25.0 ... 4.75e+03 5.25e+03
│           time_instant          (time_counter) object 16B ...
│           gphit                 (j, i) float64 213kB ...
│           glamt                 (j, i) float64 213kB ...
│         * k                     (k) int64 248B 1 2 3 4 5 6 7 ... 25 26 27 28 29 30 31
│         * j                     (j) int64 1kB 1 2 3 4 5 6 ... 143 144 145 146 147 148
│         * i                     (i) int64 1kB 1 2 3 4 5 6 ... 175 176 177 178 179 180
│       Dimensions without coordinates: axis_nbounds
│       Data variables: (12/87)
│           time_centered_bounds  (time_counter, axis_nbounds) object 32B 0001-01-01 ...
│           time_counter_bounds   (time_counter, axis_nbounds) object 32B 0001-01-01 ...
│           simsk                 (time_counter, j, i) float32 213kB ...
│           simsk05               (time_counter, j, i) float32 213kB ...
│           simsk15               (time_counter, j, i) float32 213kB ...
│           snvolu                (time_counter, j, i) float32 213kB ...
│           ...                    ...
│           e1t                   (j, i) float64 213kB ...
│           e2t                   (j, i) float64 213kB ...
│           top_level             (j, i) int32 107kB ...
│           bottom_level          (j, i) int32 107kB ...
│           tmask                 (k, j, i) bool 826kB False False False ... False False
│           tmaskutil             (j, i) bool 27kB False False False ... False False
│       Attributes:
│           name:         ORCA2_5d_00010101_00010110_icemod
│           description:  ice variables
│           title:        ice variables
│           Conventions:  CF-1.6
│           timeStamp:    2025-Sep-13 17:44:13 GMT
│           uuid:         c6c24bd5-1d2b-4d7b-98b5-8d379c94e84b
│           nftype:       T
│           iperio:       True
├── Group: /gridU
│       Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│                                  i: 180)
│       ...
├── Group: /gridV
│       Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│                                  i: 180)
│       ...
├── Group: /gridW
│       Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│                                  i: 180)
│       ...
└── Group: /gridF
        Dimensions:       (j: 148, i: 180, k: 31)
        ...

---

2. NOC Near-Present Day eORCA1

Next, we'll consider monthly-mean outputs from the National Oceanography Centre Near-Present-Day global eORCA1 configuration of NEMO forced using ERA5 atmospheric reanalysis from 1976-present.

For more details on this model configuration and the available outputs, users can explore the Near-Present-Day documentation here.

---

The eORCA1 ERA5v1 NPD data are stored in publicly available Icechunk repositories accessible via the NOC OceanDataStore library. In this example, we will show how to use to the OceanDataCatalog API to remotely access NOC NPD outputs and use the .from_datasets() constructor to create a NEMODataTree.

Users can find more information on how to get started using the OceanDataCatalog to search for and access available NEMO model outputs here.

from OceanDataStore import OceanDataCatalog

# Create a new OceanDataCatalog to access the NOC STAC:
catalog = OceanDataCatalog(catalog_name="noc-model-stac")

# Opening domain_cfg:
ds_domain = catalog.open_dataset(id="noc-npd-era5/npd-eorca1-era5v1/gn/domain/domain_cfg")

# Opening gridT dataset, including sea surface temperature (°C) and sea surface height (m):
ds_gridT = catalog.open_dataset(id="noc-npd-era5/npd-eorca1-era5v1/gn/T1m",
                                variable_names=['tos_con', 'zos'],
                                start_datetime='2000-01',
                                end_datetime='2020-12',
                                )

Next, let's create a NEMODataTree from a dictionary of eORCA1 ERA5v1 xarray.Datasets, specifying that our global domain is zonally periodic (iperio=True) and north folding on T-points (nftype = "F").

datasets = {"parent": {"domain": ds_domain.squeeze(), "gridT": ds_gridT}}

nemo = NEMODataTree.from_datasets(datasets=datasets, iperio=True, nftype="F")

nemo

<xarray.DataTree>
Group: /
│   Dimensions:        (time_counter: 240)
│   ...
│
├── Group: /gridT
│   Dimensions:        (time_counter: 240)
│       Dimensions:        (time_counter: 240, j: 331, i: 360, k: 75)
│       Coordinates:
│           time_centered  (time_counter) datetime64[ns] 5kB dask.array<chunksize=(1,), meta=np.ndarray>
│           gphit          (j, i) float64 953kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│           glamt          (j, i) float64 953kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│         * k              (k) int64 600B 1 2 3 4 5 6 7 8 9 ... 68 69 70 71 72 73 74 75
│         * j              (j) int64 3kB 1 2 3 4 5 6 7 8 ... 325 326 327 328 329 330 331
│         * i              (i) int64 3kB 1 2 3 4 5 6 7 8 ... 354 355 356 357 358 359 360
│       Data variables:
│           tos_con        (time_counter, j, i) float32 275MB dask.array<chunksize=(1, 331, 360), meta=np.ndarray>
│           zos            (time_counter, j, i) float32 275MB dask.array<chunksize=(1, 331, 360), meta=np.ndarray>
│           e1t            (j, i) float64 953kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│           e2t            (j, i) float64 953kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│           top_level      (j, i) int32 477kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│           bottom_level   (j, i) int32 477kB dask.array<chunksize=(331, 360), meta=np.ndarray>
│           tmask          (k, j, i) bool 9MB False False False ... False False False
│           tmaskutil      (j, i) bool 119kB False False False ... False False False
│       Attributes:
│           nftype:   F
│           iperio:   True
├── Group: /gridU
│       Dimensions:       (j: 331, i: 360, k: 75)
│       ...
├── Group: /gridV
│       Dimensions:       (j: 331, i: 360, k: 75)
│       ...
├── Group: /gridW
│       Dimensions:       (j: 331, i: 360, k: 75)
│       ...
└── Group: /gridF
        Dimensions:       (j: 331, i: 360, k: 75)
        ...

Regional Ocean Models:

---

AMM12

We can also construct a NEMODataTree using outputs from regional NEMO ocean model simulations.

Here, we will consider example outputs from the regional AMM12 NEMO reference configuration.

The AMM, Atlantic Margins Model, is a regional model covering the Northwest European Shelf domain on a regular lat-lon grid at approximately 12km horizontal resolution. AMM12 uses the vertical s-coordinates system, GLS turbulence scheme, and tidal lateral boundary conditions using a flather scheme.

Further information on this reference configuration can be found here.

---

filepaths = nc.examples.get_filepaths("AMM12")

filepaths

{'domain_cfg.nc': '/Users/me/Library/Caches/nemo_cookbook/AMM12/domain_cfg.nc',
 'AMM12_1d_20120102_20120110_grid_T.nc': '/Users/me/Library/Caches/nemo_cookbook/AMM12/AMM12_1d_20120102_20120110_grid_T.nc',
 'AMM12_1d_20120102_20120110_grid_U.nc': '/Users/me/Library/Caches/nemo_cookbook/AMM12/AMM12_1d_20120102_20120110_grid_U.nc',
 'AMM12_1d_20120102_20120110_grid_V.nc': '/Users/me/Library/Caches/nemo_cookbook/AMM12/AMM12_1d_20120102_20120110_grid_V.nc'
 }

As we showed in the AGRIF_DEMO example, we need to populate the paths dictionary with the domain_cfg and gridT/U/V filepaths corresponding to our regional model domain.

paths = {"parent": {
         "domain": filepaths["domain_cfg.nc"],
         "gridT": filepaths["AMM12_1d_20120102_20120110_grid_T.nc"],
         "gridU": filepaths["AMM12_1d_20120102_20120110_grid_U.nc"],
         "gridV": filepaths["AMM12_1d_20120102_20120110_grid_V.nc"],
        },
        }

Next, we can construct a new NEMODataTree called nemo using the .from_paths() constructor.

Note, we do not actually need to specify that our regional domain is not zonally periodic in this case, given that, by default, iperio=False.

nemo = NEMODataTree.from_paths(paths, iperio=False)

nemo

<xarray.DataTree>
Group: /
│   Dimensions:               (time_counter: 8, axis_nbounds: 2)
│   ...
│
├── Group: /gridT
│   Dimensions:               (time_counter: 8, axis_nbounds: 2)
│   ...
├── Group: /gridT
│       Dimensions:               (time_counter: 8, axis_nbounds: 2, j: 224, i: 198,
│                                  k: 51)
│       Coordinates:
│           time_centered         (time_counter) datetime64[ns] 64B ...
│           gphit                 (j, i) float64 355kB ...
│           glamt                 (j, i) float64 355kB ...
│         * k                     (k) int64 408B 1 2 3 4 5 6 7 ... 45 46 47 48 49 50 51
│         * j                     (j) int64 2kB 1 2 3 4 5 6 ... 219 220 221 222 223 224
│         * i                     (i) int64 2kB 1 2 3 4 5 6 ... 193 194 195 196 197 198
│       Dimensions without coordinates: axis_nbounds
│       Data variables:
│           time_centered_bounds  (time_counter, axis_nbounds) datetime64[ns] 128B ...
│           time_counter_bounds   (time_counter, axis_nbounds) datetime64[ns] 128B ...
│           tos                   (time_counter, j, i) float32 1MB ...
│           sos                   (time_counter, j, i) float32 1MB ...
│           zos                   (time_counter, j, i) float32 1MB ...
│           e1t                   (j, i) float64 355kB ...
│           e2t                   (j, i) float64 355kB ...
│           top_level             (j, i) int32 177kB ...
│           bottom_level          (j, i) int32 177kB ...
│           tmask                 (k, j, i) bool 2MB False False False ... False False
│           tmaskutil             (j, i) bool 44kB False False False ... False False
│       Attributes:
│           nftype:   None
│           iperio:   False
├── Group: /gridU
│       Dimensions:               (time_counter: 8, axis_nbounds: 2, j: 224, i: 198,
│                                  k: 51)
│       ...
├── Group: /gridV
│       Dimensions:               (time_counter: 8, axis_nbounds: 2, j: 224, i: 198,
│                                  k: 51)
│       ...
├── Group: /gridW
│       Dimensions:       (j: 224, i: 198, k: 51)
│       ...
└── Group: /gridF
        Dimensions:       (j: 224, i: 198, k: 51)
        ...

Nested Global Ocean Sea-Ice Models:

---

AGRIF_DEMO

Returning to our AGRIF_DEMO NEMO reference configuration, we can also construct a more complex NEMODataTree to store the outputs of the global parent and its child domains in a single data structure.

We will make use of the two successively nested domains located in the Nordic Seas, with the finest grid (1/6°) spanning the Denmark strait. This grandchild domain also benefits from “vertical nesting”, meaning that it has 75 geopotential z-coordinate levels, compared with 31 levels in its parent domain.

---

filepaths = nc.examples.get_filepaths("AGRIF_DEMO")

Let's start by defining the paths dictionary for the ORCA2 global parent domain and its child and grandchild domains. Notice, that for child and grandchild domains, we must also specify a unique domain number, given that we could include further child or grandchild nests.

paths = {"parent": {
        "domain": filepaths["domain_cfg.nc"],
        "gridT": filepaths["ORCA2_5d_00010101_00010110_grid_T.nc"],
        "gridU": filepaths["ORCA2_5d_00010101_00010110_grid_U.nc"],
        "gridV": filepaths["ORCA2_5d_00010101_00010110_grid_V.nc"],
        "gridW": filepaths["ORCA2_5d_00010101_00010110_grid_W.nc"],
        "icemod": filepaths["ORCA2_5d_00010101_00010110_icemod.nc"]
        },
        "child": {
        "1":{
        "domain": filepaths["2_domain_cfg.nc"],
        "gridT": filepaths["2_Nordic_5d_00010101_00010110_grid_T.nc"],
        "gridU": filepaths["2_Nordic_5d_00010101_00010110_grid_U.nc"],
        "gridV": filepaths["2_Nordic_5d_00010101_00010110_grid_V.nc"],
        "gridW": filepaths["2_Nordic_5d_00010101_00010110_grid_W.nc"],
        "icemod": filepaths["2_Nordic_5d_00010101_00010110_icemod.nc"]
        }},
        "grandchild": {
        "2":{
        "domain": filepaths["3_domain_cfg.nc"],
        "gridT": filepaths["3_Nordic_5d_00010101_00010110_grid_T.nc"],
        "gridU": filepaths["3_Nordic_5d_00010101_00010110_grid_U.nc"],
        "gridV": filepaths["3_Nordic_5d_00010101_00010110_grid_V.nc"],
        "gridW": filepaths["3_Nordic_5d_00010101_00010110_grid_W.nc"],
        "icemod": filepaths["3_Nordic_5d_00010101_00010110_icemod.nc"]
        }},
        }

Next, we need to construct a nests dictionary which contains the properties which define each nested domain. These include:

• Unique domain number (mapping properties to entries in our paths directory).
• Parent domain (to which unique domain does this belong).
• Zonal periodicity of child / grandchild domain (iperio).
• Horizontal grid refinement factors (rx, ry).
• Start (imin, jmin) and end (imax, jmax) grid indices in both directions (i, j) of the parent grid.

The latter information should be copied directly from the AGRIF_FixedGrids.in anicillary file used to define nested domains in NEMO.

---

Example AGRIF_FixedGrids.in

1 (Number of nested domains - parent).

121 146 113 133 4 4 4 (imin, imax, jmin, jmax, rx, ry, rt)

1 (Number of nested domains - child)

20 60 27 60 3 3 3 (imin, imax, jmin, jmax, rx, ry, rt)

0 (Number of nested domains - grandchild)

---

Important: we must specify the start and end grid indices using Fortran (1-based) indexes rather than Python (0-based) indexes.

nests = {
    "1": {
    "parent": "/",
    "rx": 4,
    "ry": 4,
    "imin": 121,
    "imax": 146,
    "jmin": 113,
    "jmax": 133,
    "iperio": False
    },
    "2": {
    "parent": "1",
    "rx": 3,
    "ry": 3,
    "imin": 20,
    "imax": 60,
    "jmin": 27,
    "jmax": 60,
    "iperio": False
    }
    }

Finally, we can construct a new NEMODataTree called nemo using the .from_paths() constructor.

Again, we also need to specify that our global parent domain is zonally periodic (iperio=True) and north folding on T-points (nftype = "T") rather than a closed (regional) domain.

We can also include additional keyword arguments to pass onto xarray.open_dataset or xr.open_mfdataset when opening NEMO model output files.

nemo = NEMODataTree.from_paths(paths=paths, nests=nests, iperio=True, nftype="T", engine="netcdf4")

nemo

<xarray.DataTree>
Group: /
│   Dimensions:               (time_counter: 2, axis_nbounds: 2, ncatice: 5)
│   ...
│
├── Group: /gridT
│   │   Dimensions:               (time_counter: 2, axis_nbounds: 2, j: 148, i: 180,
│   │                              ncatice: 5, k: 31)
│   │   ...
│   └── Group: /gridT/1_gridT
│       │   Dimensions:               (time_counter: 2, axis_nbounds: 2, j1: 80, i1: 100,
│       │                              ncatice: 5, k1: 29)
│       │   ...
│       └── Group: /gridT/1_gridT/2_gridT
│               Dimensions:               (time_counter: 2, axis_nbounds: 2, j2: 99, i2: 120,
│                                          ncatice: 5, k2: 60)
│               ...
├── Group: /gridU
│   │   Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│   │                              i: 180)
│   │   ...
│   └── Group: /gridU/1_gridU
│       │   Dimensions:               (k1: 29, axis_nbounds: 2, time_counter: 2, j1: 80,
│       │                              i1: 100)
│       │   ...
│       └── Group: /gridU/1_gridU/2_gridU
│               Dimensions:               (k2: 60, axis_nbounds: 2, time_counter: 2, j2: 99,
│                                          i2: 120)
│               ...
├── Group: /gridV
│   │   Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│   │                              i: 180)
│   │   ...
│   └── Group: /gridV/1_gridV
│       │   Dimensions:               (k1: 29, axis_nbounds: 2, time_counter: 2, j1: 80,
│       │                              i1: 100)
│       │   ...
│       └── Group: /gridV/1_gridV/2_gridV
│               Dimensions:               (k2: 60, axis_nbounds: 2, time_counter: 2, j2: 99,
│                                          i2: 120)
│               ...
├── Group: /gridW
│   │   Dimensions:               (k: 31, axis_nbounds: 2, time_counter: 2, j: 148,
│   │                              i: 180)
│   │   ...
│   └── Group: /gridW/1_gridW
│       │   Dimensions:               (k1: 29, axis_nbounds: 2, time_counter: 2, j1: 80,
│       │                              i1: 100)
│       │   ...
│       └── Group: /gridW/1_gridW/2_gridW
│               Dimensions:               (k2: 60, axis_nbounds: 2, time_counter: 2, j2: 99,
│                                          i2: 120)
│               ...
└── Group: /gridF
    │   Dimensions:       (j: 148, i: 180, k: 31)
    │   ...
    └── Group: /gridF/1_gridF
        │   Dimensions:       (j1: 80, i1: 100, k1: 29)
        │   ...
        └── Group: /gridF/1_gridF/2_gridF
                Dimensions:       (j2: 99, i2: 120, k2: 60)
                ...

Coupled Climate Models:

UKESM1-0-LL

In addition to ocean-only and ocean sea-ice hindcast simulations (prescribing surface atmospheric forcing), NEMO models are also used as the ocean components in many coupled climate models, including the UK Earth System Model (UKESM) developed jointly by the UK Met Office and Natural Environment Research Council (NERC).

Here, we show how to construct a NEMODataTree from the 1° global ocean sea-ice component of UKESM1-0-LL included in the sixth Coupled Model Intercomparsion Project (CMIP6) using outputs accessible via the CEDA Archive.

Since CMIP6 outputs are processed and formatted according to the CMIP Community Climate Model Output Rewriter (CMOR) software, we will need to include a few additional pre-processing steps to reformat our NEMO model outputs in order to construct a NEMODataTree

Important: only CMIP model outputs variables stored on their original NEMO ocean model grid (i.e, gn) can be used to construct a NEMODataTree

# Open domain_cfg:
ds_domain_cfg = xr.open_dataset("/path/to/MOHC/Ofx/domain_cfg_Ofx_UKESM1.nc")

# Define time decoder to handle CMIP6 time units:
time_decoder = xr.coders.CFDatetimeCoder(use_cftime=True)

# Open potential temperature (°C) dataset:
base_filepath = "/badc/cmip6/data/CMIP6/CMIP/MOHC/UKESM1-0-LL/historical/r4i1p1f2/Omon/thetao/gn/latest"
ds_ukesm1_gridT = xr.open_mfdataset(f"{base_filepath}/thetao_Omon_UKESM1-0-LL_historical_r4i1p1f2_gn_*.nc",
                                    data_vars='all',
                                    decode_times=time_decoder
                                   )

# Adding mixed layer depth (m) to dataset:
ds_ukesm1_gridT['mlotst'] = xr.open_mfdataset(f"{base_filepath}/mlotst_Omon_UKESM1-0-LL_historical_r4i1p1f2_gn_*.nc",
                                              data_vars='all',
                                              decode_times=time_decoder
                                              )['mlotst']

Now we have defined our domain and gridT datasets, let's define a datasets dictionary ensuring that we rename CMORISED dimensions to be consistent with standard NEMO model outputs.

We can then define a NEMODataTree using the .from_datasets() constructor, specifying that our global parent domain is zonally periodic and north-folding on F-points.

datasets = {"parent": {
                "domain": ds_domain_cfg.rename({'z':'nav_lev'}),
                "gridT": ds_ukesm1_gridT.rename({'time':'time_counter', 'i':'x', 'j':'y', 'lev':'deptht'}),
                }}

nemo = NEMODataTree.from_datasets(datasets=datasets, iperio=True, nftype="F")

nemo
