pyBDY Documentation

Welcome to the documentation for pyBDY (NEMO lateral boundary conditions)

Introduction

pyBDY is a python package to generate lateral boundary conditions for regional NEMO model configurations. It has been developed to uses geographical and depth information from an a source data (e.g. a global ocean simulation) and translate them to a destination NEMO region simulation. It makes use of a kdtree approximate nearest neighbour algorithm in order to provide a generic method of weighted average interpolation for any flavour of ocean model. The available options are accessed through a NEMO style namelist.

How to cite

Back to top

Please cite pyBDY version 0.4.0 in your work using:

Harle, J., Barton, B.I., Nagella, S., Crompton, S., Polton J., Patmore, R., Morado, J., Prime, T., Wise, A., De Dominicis, M., Blaker, A. Farey, J.K., (2025). pyBDY - NEMO lateral boundary conditions v0.4.0 [Software]. https://doi.org

Change Log

Back to top

The lastes version of pyBDY is version 0.4.0. The changes relative to the previous version (0.3.0) are:

Sigma to sigma vertical layer interpolation is now possible.
Vertical interpolation in pyBDY can now be turned off for zco vertical coodinate data.
The namelist has been streamlined to removed variables that are no longer used.
Time input in the namelist has changed to offer more granularity.
Grid variables names are now specified using a .json file instead of .ncml. Source data is still specified with .nmcl.
The boundary is split into chunks to allow for processing smaller sections of data.
Boundaries that cross an east - west wrap in source data can be processed.
The 1-2-1 horizontal filter has been turned off.
The seawater dependancy updated to gsw.
A plotting masking bug has been fixed.
There is now horizontal flood filling that will remove zeros from salinity and temperature near land.
Bug fix for 90 boundaries that meet diagonally to produce a 90 degree corner.
Some unit tests have been added and full integration tests.
Documentation has been updated and restructured.

There is a new library for generating NEMO initial conditions called pyIC. pyIC can be found at: https://github.com/NOC-MSM/pyIC

Dependencies

Back to top

pyBDY is installed under a conda/mamba environment to aid wider distribution and to facilitate development. The key dependecies are listed below:

python=3.9
netCDF4
scipy
numpy
xarray
matplotlib
cartopy
thredds_crawler
seawater
pyqt5
pyjnius
cftime
gsw

A recent JAVA installation is also required.

Quick Start Installation

Back to top

To get started, check out and set up an instance of the pyBDY GitHub repository:

export PYBDY_DIR=$PWD/pyBDY
git clone git@github.com:NOC-MSM/pyBDY.git

**Helpful Tip...

- **It is not advised to checkout the respository in your home directory.**

Creating a specific conda virtual environment is highly recommended (click here for more about virtual enviroments). Load conda (e.g. through anaconda/miniforge) and create the environment through the provided environment.yml file.

cd $PYBDY_DIR
conda env create -n pybdy -f environment.yml

Activate the new environment

conda activate pybdy

Install pyBDY

pip install -e .

Make sure the Java Runtime Environment is set:

export JAVA_HOME=path_to_jre

Generalised methods for defining paths are as follows:

export JAVA_HOME=$(readlink -f $(which java)) # UNIX
export JAVA_HOME=$(/usr/libexec/java_home)    # Mac

To check that pyBDY have been correctly installed in the virtual environment, enter the following command:

pybdy -v

If it has you should see the help usage prompt:

usage: pybdy -g -s <namelist.bdy>

If not please see the troubleshooting pages for common causes as to why the installation may fail.

To deactivate the conda environment:

conda deactivate

How to use pyBDY

Back to top

In this documentation "bdy points" refer to the output boundary points generated by pyBDY. First follow the installation instructions Quick Start Installation.

Step 1: File Preparation

Copy and paste the following files into your working directory:

inputs/namelist_local.bdy
inputs/grid_name_map.json
inputs/src_data_local.ncml
namelist.bdy: Specifies file paths and configuration options.
grid_name_map.json: Defines variable names in horizontal and vertical grid files.
src_data.ncml: Aggregates and remaps source data variables for PyBDY.

Step 2: Edit the Namelist `namelist_local.bdy`

Descriptions of all required variables are in src/pybdy/variable.info. Here we will summarise the main variables that will need changing to get started.

Key Namelist Parameters

sn_src_hgr
sn_src_zgr
sn_dst_hgr
sn_dst_zgr
sn_src_msk
sn_bathy
sn_nme_map
sn_src_dir
sn_dst_dir
cn_mask_file
ln_zinterp
nn_rimwidth

File Paths

Directory paths in bdy file can be relative or absolute. The application picks the relative path from the current working directory.

sn_src_hgr: Source horizontal grid file. Use ncdump -h or ncview to inspect variables. The variable names are mapped in grid_name_map.json. Map extra variable names in grid_name_map.json to avoid recalculation. See Step 4: Setting up the JSON file for variable descriptions and requirements.
sn_src_zgr: Source vertical grid file. The file may be the same file as sn_src_hgr. The variable names are mapped in grid_name_map.json. Map extra variables like gdepw, gdepu, e3w in grid_name_map.json to avoid recalculation. Note: Time-varying depths are not used in PyBDY. See Step 4: Setting up the JSON file for variable descriptions and requirements.
sn_dst_hgr, sn_dst_zgr: Destination equivalents of the above.
sn_src_msk: Source mask file with variables:
- tmask, umask, vmask, fmask
sn_bathy: Destination bathymetry file with variable:
- Bathymetry
- Used to calculate boundary mask if ln_mask_file is unset.
- Can be computed from e3w and bottom_level:
```
gdepw = np.cumsum(e3w, axis=1)
grid = np.indices(bottom_level.shape)
bathy = gdepw[bottom_level, grid[0], grid[1]]
```
sn_nme_map: Path to grid_name_map.json
- Note: ncml is no longer used for grid input. Use grid_name_map.json instead.
- See Step 4: Setting up the JSON file for variable descriptions and inputs/grid_name_map_readme.txt.
sn_src_dir: Path to src_data.ncml
- This is an NcML (XML) file that points to source data (not grid) paths. It can also include THREDDS URLs (see inputs/namelist_remote.bdy for example).
- More detail on setting up the NcML file is in Step 3: Setting up the NcML file.
sn_dst_dir: Output directory for PyBDY data
cn_mask_file (optional): Used to define open boundaries.
- Values: -1 (out-of-domain), 0 (land), 1 (water)
- If not provided, PyBDY uses bathymetry to infer boundaries

Other Settings

ln_dyn2d: used to turn on barotropic velocities in boundary processing.
ln_dyn3d: used to turn on total velocities in boundary processing. Note this is not baroclinic velocities, which is important when running NEMO. You may want ln_dyn2d and ln_dyn3d if testing but usually one of them is sufficient as long as it matches your NEMO namelist setup.
ln_tra: used to turn on tracers temperature and salinity in the boundary processing.
ln_ice: used to turn on ice boundary conditions so that ice1, ice2 and ice3 are processed.
ln_zinterp: Disables vertical interpolation if false and source (parents) must use zco vertical levels.
- Output will match source vertical levels.
- If source uses zps or sco, this will be automatically set to true during run-time.
nn_rimwidth: Number of interior boundary points to generate
- Typical value: 9
- For tidal boundaries: 1

Time Settings

Ensure time_counter exists in source files
Files must be time-ascending
NetCDF time metadata must include:
- calendar: "gregorian", "noleap", or "360_day"
- units: "seconds since YYYY-MM-DD hh:mm:ss"

Required Namelist Time Parameters

sn_date_start: Start date for output (format: YYYY-MM-DD)
sn_date_end: End date for output (format: YYYY-MM-DD)
- The start date and end date of output must fall within the source data time range.
sn_dst_calendar: Output calendar format
sn_date_origin: Time counter reference date for output (format: YYYY-MM-DD)
ln_time_interpolation: If true, interpolate to daily steps.
- If false, output uses source data calendar (monthly steps only)

Step 3: Setting up the NcML file

The NcML file has wrappers like:
- <netcdf> which specifies a single NetCDF file or dataset reference. The top level in the example below declares a virtual NetCDF dataset.
- <aggregation> virtually combine multiple NetCDF files into a single dataset. It has attributes type and dimName. The type of combination can be joinExisting or union. The dimName specifies the dimension along which to join files.
- <scan> is used inside the <aggregation> wrapper to find multiple NetCDF files in a directory. This is instead of or in addition to listing them manually with several <netcdf location="./example_path.nc"/> wrappers. <scan> has attributes like location which gives the path to search, suffix which gives the file ending and regExp which can provide a search expression using Regular Expression (Regex) format. Regex is a special text string that can be used in the NcML file for describing a search pattern to match against some text. You may compare using Regex to filter what files to include in your datasets against using wildcard (*) to specify a file search pattern in your computer. More information on Regex patterns can be found here Regex.
- <dimension> is a wrapper that allows for renaming a dimension (e.g. time_counter).
- <variable> is a wrapper that allows for renaming or modifying a variable or variable attributes (e.g. units).
- <rename> maps a variable or dimension from its original name to a new name. It must be placed inside a <variable> or <dimension> wrapper. Variable names can be remapped in a way that only affects the reading of the file whithout modifying the original NetCDF file. This can be useful if the source (parent) data does not have the variables named in the standard way pybdy expects. The renaming can be do using <variable name="v1"> and <rename name="v2"> where the "v1" is the original name and "v2" is the new name.
The dimensions that pybdy expects in the source data are:
- time_counter - this is the required time dimension name
- dimensions in variables must be ordered time_counter, depth, y, x if 4 dimensional or ordered time_counter, y, x if 3 dimensional.
The variables that pybdy expects in the source data are:
- votemper - the water temperature
- votemper - the water salinity
- sossheig - the sea surface height
- vozocrtx - the u (northward) component of velocity
- vomecrty - the v (eastward) component of velocity
- ice1 - a sea ice parameter
- ice2 - a sea ice parameter
- ice3 - a sea ice parameter
See inputs folder for more examples.

Example structure combining data on the T grid, U grid and V grid each along the time dimension then aggregating them together into a single virtual file:

<ns0:netcdf xmlns:ns0="http://www.unidata.ucar.edu/namespaces/netcdf/ncml-2.2" title="aggregation example">
  <ns0:aggregation type="union">
    <ns0:netcdf>
      <ns0:aggregation type="joinExisting" dimName="time_counter">
        <ns0:scan location="/path_to_src_data/Data/" regExp=".*grid_T.*" />
      </ns0:aggregation>
    </ns0:netcdf>
    <ns0:netcdf>
      <ns0:aggregation type="joinExisting" dimName="time_counter">
        <ns0:scan location="/path_to_src_data/Data/" regExp=".*grid_U.*" />
      </ns0:aggregation>
    </ns0:netcdf>
    <ns0:netcdf>
      <ns0:aggregation type="joinExisting" dimName="time_counter">
        <ns0:scan location="/path_to_src_data/Data/" regExp=".*grid_V.*" />
      </ns0:aggregation>
    </ns0:netcdf>
  </ns0:aggregation>
</ns0:netcdf>

An example NcML expression renaming a variable in joined NetCDF files:

<ns0:netcdf xmlns:ns0="http://www.unidata.ucar.edu/namespaces/netcdf/ncml-2.2">
  <ns0:aggregation type="joinExisting" dimName="time_counter">
    <ns0:scan location="./monthly/" suffix=".nc" subdirs="false" />
    <ns0:variable name="temp">
      <ns0:rename name="votemper" />
    </ns0:variable>
  </ns0:aggregation>
</ns0:netcdf>

Step 4: Setting up the JSON file

The JSON file "grid_name_map.json" file provides a way to rename/remap the variables from names in the file netcdf file to the variable names desired by pybdy. This is specifically for the horizontal (hgr) and vertical (zgr) grid files (not data Input/Output). In the past this could be done with a .ncml file but now it done using .json.

The "grid_name_map.json" file has "dimension_map", "sc_variable_map" and "dst_variable_map", these should not be edited. "sc" refers to the source grid and "dst" refers to the destination grid. The list of dimensions t, z, y, x under "dimension_map" are "key: value" pairs, where the "key" should be unedited and the "value" should be changed to match the name of the respective dimension in your netcdf file. The is the same process for the list of variables under "variable_map". The "variable_map" is used for both horizontal and vertical grid variable names even if they come from separate files.

Below is a decription of each dimension and variable. Not all variables are needed, those that are marked with a * below are optional, if you don't have the optional variable in your netcdf file leave it as the default "value" and pybdy will do its best to calculate it. If the variable is available it should be name mapped otherwise pybdy may incorrectly interpret the grid type for example. Variables marked ** may be optional depending on what other variables are provided. In all cases "t" should be size 1. Pybdy does not deal with time varying grids.

Summary of ideal requirements:

2D grid (or 3D with time dimension = 1) of glamt, gphit, glamu, e1t, e2t, e1u, etc.
3D grid (or 4D with time dimension = 1) of gdept, gdepw, e3t, e3w, and 2D grid of mbathy (aka bottom_level)

Summary of minimum requirements:

for the horizontal grid variables we need at least nav_lat, nav_lon on a 2D grid.
for the vertical grid variables we have several possible variations ordered by preference: 1.gdept or e3t are specified on 3D grids (Note et3 is sometimes called et3_0 i.e. non-time varying, but has dimensions t, z, y, x, in this case specify "et3": "et3_0"). 2. 1D depth (or 2D with dimension time and z) gdept_0 is specified in addition to mbathy. 3. If mbathy is missing in the source grid, use gdept_0 (1D depth) and specify any 2D field (e.g., "mbathy": "nav_lon") for mbathy Not recommended for destination (sn_dst_zgr). 4. deptht_bounds is not the same at gdept. If it is the only option you need to use it to calculate gdept yourself.

"dimension_map"

"t" = time dimension (size 1)
"z" = depth dimension
"y" = horizontal dimension often aligned with latitude
"x" = horizontal dimension often aligned with longitude

"sc_variable_map" and "dst_variable_map" which refer to sc (source grid variables in "sn_src_hgr",
"sn_src_zgr") and dst (destination grid variables in "sn_dst_hgr", "sn_dst_zgr")

"nav_lon" = ** Longitude on t-grid (dims [y, x])
            (only needed if glamt is not present in the file)
"nav_lat" = ** Latitude on t-grid (dims [y, x])
            (only needed if gphit is not present in the file)
"glamt" = Longitude on t-grid (dims [t, y, x])
"gphit" = Latitude on t-grid (dims [t, y, x])
"glamf" = * Longitude on f-grid (dims [t, y, x])
"gphif" = * Latitude on f-grid (dims [t, y, x])
"glamu" = * Longitude on u-grid (dims [t, y, x])
"gphiu" = * Latitude on u-grid (dims [t, y, x])
"glamv" = * Longitude on v-grid (dims [t, y, x])
"gphiv" = * Latitude on v-grid (dims [t, y, x])
"e1t" = * scale factor distance between grid cell in x direction on t-grid (dims [t, y, x])
"e2t" = * scale factor distance between grid cell in y direction on t-grid (dims [t, y, x])
"e1f" = * scale factor distance between grid cell in x direction on f-grid (dims [t, y, x])
"e2f" = * scale factor distance between grid cell in y direction on f-grid (dims [t, y, x])
"e1u" = * scale factor distance between grid cell in x direction on u-grid (dims [t, y, x])
"e2u" = * scale factor distance between grid cell in y direction on u-grid (dims [t, y, x])
"e1v" = * scale factor distance between grid cell in x direction on v-grid (dims [t, y, x])
"e2v" = * scale factor distance between grid cell in y direction on v-grid (dims [t, y, x])

"mbathy" = ** index of the ocean bottom level (may be called bottom_level) (dims [t, y, x])
            (only needed if gdept or e3t not given i.e. gdept_0 given. If gdept_0 is the
            only option and no mbathy is available offer any variable with dims [t, y, x]
            or dims [y, x])
"gdept_0" = ** 1D depth of levels on t-grid and t-levels (dims [t, z])
            (only needed if gdept or e3t not given)
"gdept" = ** 3D depth of levels on t-grid and t-levels (dims [t, z, y, x])
            (only needed if gdept_0 or e3t not given)
"gdepu" = * 3D depth of levels on u-grid and t-levels (dims [t, z, y, x])
"gdepv" = * 3D depth of levels on v-grid and t-levels (dims [t, z, y, x])
"gdepf" = * 3D depth of levels on f-grid and t-levels (dims [t, z, y, x])
"gdepw" = * 3D depth of levels on t-grid and w-levels (dims [t, z, y, x])
"gdepuw" = * 3D depth of levels on u-grid and w-levels (dims [t, z, y, x])
"gdepvw" = * 3D depth of levels on v-grid and w-levels (dims [t, z, y, x])
"e3t" = ** vertical scale factor distance between t-levels on t-grid (dims [t, z, y, x])
            (only needed if gdept or gdept_0 not given)
"e3w" = * vertical scale factor distance between w-levels on t-grid (dims [t, z, y, x])
"e3u" = * vertical scale factor distance between t-levels on u-grid (dims [t, z, y, x])
"e3v" = * vertical scale factor distance between t-levels on v-grid (dims [t, z, y, x])
"e3f" = * vertical scale factor distance between t-levels on f-grid (dims [t, z, y, x])
"e3uw" = * vertical scale factor distance between w-levels on u-grid (dims [t, z, y, x])
"e3vw" = * vertical scale factor distance between w-levels on v-grid (dims [t, z, y, x])
"e3fw" = * vertical scale factor distance between w-levels on f-grid (dims [t, z, y, x])

Step 5: Running pyBDY

To use pyBDY, the following command is entered: (the example will run a benchmarking test):

pybdy -s /path/to/namelist/file (e.g. ./inputs/namelist_remote.bdy)

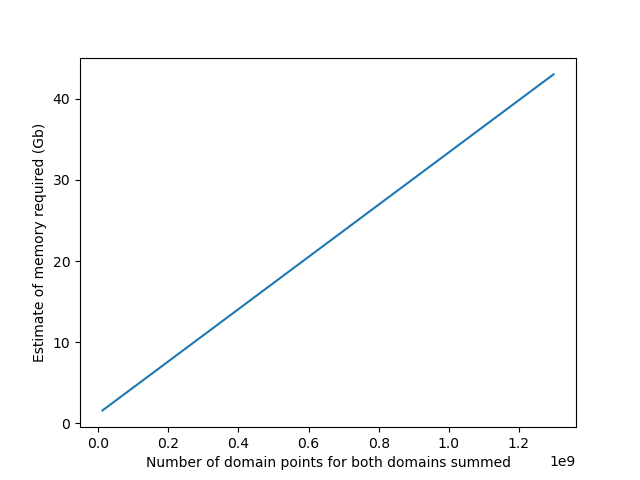

This command line tool reads a BDY file, extracts boundary data and prepares the data for a NEMO simulation.

Worked Example

Back to top

Here we show a worked example of how to set up the namelist for a different domain than the examples found in the inputs folder. The example child (destination) here is a regional NEMO model that covers the Indian Ocean and the parent (source) used here is a global NEMO model.

Namelist File

Below is excerpts from an example namelist.bdy.

Here the file paths are set. These can be absolute (i.e. starting with "/") or relative (i.e. starting with "./"). For help with what variables are needed in these files see How to use pyBDY 🧑‍🎓 . In the example case, the bathmetry file needed to be calculated before running pybdy. It may also be the case that you need to calculate variables like gdept for the sn_src_zgr file fore running pybdy. For setting up the grid_name_map.json see the JSON file example section below.

!------------------------------------------------------------------------------
!  grid information
!------------------------------------------------------------------------------
   sn_src_hgr = '/scratch/India_Test/mesh_mask_ORCA025_light.nc4'
   sn_src_zgr = '/scratch/India_Test/20241211_restart.nc'
   sn_dst_hgr = '/scratch/India_Test/domain_cfg.nc'     ! Expects vars found in domain_cfg.nc
   sn_dst_zgr = '/scratch/India_Test/domain_cfg.nc'     ! Expects vars: {e3u,e3v,e3w,e3t,nav_lat,nav_lon,mbathy}
   sn_src_msk = '/scratch/India_Test/mask_3D.nc'
   sn_bathy   = '/scratch/India_Test/domain_cfg_bathy.nc'    ! dst bathymetry w/o time dimension
                                                                            !Expects vars: {Bathymetry,nav_lat,nav_lon}
   sn_nme_map = './india_test/grid_name_map.json'     ! json file mapping variable names to netcdf vars

Here the source (parent) data is specified via the .nmcl file in NcML format. For setting up the src_data_local.ncml see the NcML file example section below. The output directory, file name prefix and \_FillValue in the netCDF file is specified. The sn_dst_metainfo is set in the netcdf output file history attribute. nn_src_time_adj does not get used???

!------------------------------------------------------------------------------
!  I/O
!------------------------------------------------------------------------------
   sn_src_dir = './india_test/src_data_local.ncml' ! src_files/'
   sn_dst_dir = '/scratch/benbar/India_Test/'
   sn_fn      = 'india'             ! prefix for output files
   nn_fv      = -1e20                 !  set fill value for output files
   nn_src_time_adj = 0                ! src time adjustment
   sn_dst_metainfo = 'India Data'  ! history info

Here some options are set. cn_coords_file is a file that can be output by pybdy. In this case, the child (destination) data does not have a pre-defined mask file so pybdy will use the bathymetry provided in sn_bathy to calculate the mask. If the mask produced if not giving the correct boundaries you may need to provide a mask.nc file which you generate. This file contains a 2d mask the same shape as the bathymetry where 1 = "water", 0 = "land" and -1 = "out of domain". Boundary points will be generated between water and "out of domain" which can also be where water meets the edge of the defined 2d area. Here, ln_dyn2d will provide a sea surface height (sossheig) variable in the output for barotropic velocities. ln_dyn3d would define total velocities in the in the output if set to true. Here, ln_dyn3d will not include the barotropic component in the 3d velocities but we do not need it because we have ln_dyn2d=true. At least one or the other of ln_dyn2d or ln_dyn3d should be selected and match options in NEMO. Here, ln_tra shows temperature and salinity will be output. ln_ice shows ice will not be output. ln_zinterp shows the vertical interpolation is calculated by pybdy (so should be turned off in NEMO). Here, nn_rimwidth is set to 9 to provide 9 layers of boundary points along all boundaries.

!------------------------------------------------------------------------------
!  unstructured open boundaries
!------------------------------------------------------------------------------
    ln_coords_file = .true.               !  =T : produce bdy coordinates files
    cn_coords_file = 'coordinates.bdy.nc' !  name of bdy coordinates files
                                          !  (if ln_coords_file=.TRUE.)
    ln_mask_file   = .false.              !  =T : read mask from file
    cn_mask_file   = 'mask.nc'            !  name of mask file
                                          !  (if ln_mask_file=.TRUE.)
    ln_dyn2d       = .true.               !  boundary conditions for
                                          !  barotropic fields
    ln_dyn3d       = .false.              !  boundary conditions for
                                          !  baroclinic velocities
    ln_tra         = .true.               !  boundary conditions for T and S
    ln_ice         = .false.              !  ice boundary condition
    ln_zinterp     = .true.               !  vertical interpolation
    nn_rimwidth    = 9                    !  width of the relaxation zone

In this example we are not producing the tidal forcing on the boundary because ln_tide is set to false. This means the rest of this section does not matter. See Tidal Boundary Conditions Generation for more on setting up tidal boundaries.

!------------------------------------------------------------------------------
!  unstructured open boundaries tidal parameters
!------------------------------------------------------------------------------
    ln_tide        = .false.              !  =T : produce bdy tidal conditions
    sn_tide_model  = 'FES2014'            !  Name of tidal model. Accepts FES2014, TPXO7p2, or TPXO9v5
    clname(1)      = 'M2'                 !  constituent name
    clname(2)      = 'S2'
    clname(3)      = 'K2'
    clname(4)      = 'O1'
    clname(5)      = 'P1'
    clname(6)      = 'Q1'
    clname(7)      = 'M4'
    ln_trans       = .true.               !  interpolate transport rather than
                                          !  velocities
    ! location of TPXO7.2 data
    sn_tide_grid_7p2   = './inputs/tpxo7.2/grid_tpxo7.2.nc'
    sn_tide_h          = './inputs/tpxo7.2/h_tpxo7.2.nc'
    sn_tide_u          = './inputs/tpxo7.2/u_tpxo7.2.nc'
    ! location of TPXO9v5 data: single constituents per file
    sn_tide_grid_9p5   = './inputs/TPXO9_atlas_v5_nc/grid_tpxo9_atlas_30_v5.nc'
    sn_tide_dir        = './inputs/TPXO9_atlas_v5_nc/'
    ! location of FES2014 data
    sn_tide_fes        = './inputs/FES2014/'

The time step required in output here are 3 days starting on 12th Dec 2024 (which is also used as the reference date).

!------------------------------------------------------------------------------
!  Time information for output
!------------------------------------------------------------------------------
    sn_date_start   = '2024-12-12'    !  dst output date start YYYY-MM-DD
    sn_date_end     = '2024-12-15'    !  dst output date end YYYY-MM-DD
    sn_dst_calendar = 'gregorian'     !  output calendar format
    sn_date_origin  = '2024-12-12'    !  reference for time counter YYYY-MM-DD
    ln_time_interpolation = .true. !  set to false to use parent
                                   !  calender for monthly frequency only

These parameters can be left unchanged. We do not recommend changing them.

!------------------------------------------------------------------------------
!  Additional parameters
!------------------------------------------------------------------------------
    nn_wei  = 1                   !  smoothing filter weights
    rn_r0   = 0.041666666         !  decorrelation distance use in gauss
                                  !  smoothing onto dst points. Need to
                                  !  make this a funct. of dlon
    ln_nemo3p4  = .true.          !  else presume v3.2 or v3.3
    nn_alpha    = 0               !  Euler rotation angle
    nn_beta     = 0               !  Euler rotation angle
    nn_gamma    = 0               !  Euler rotation angle
    rn_mask_max_depth = 100.0     !  Maximum depth to be ignored for the mask
    rn_mask_shelfbreak_dist = 20000.0 !  Distance from the shelf break

JSON File

This is an example .json file: grid_name_map.json. It specifise the names of variables in the source (parent) and destination (child) netCDF grid files. The grid files need to be checked with "ncdump -h" and the variable names matched appropriately. It is expected that some of these variables will not be in your grid files. That is not a problem as long at you map the variables that meet the minimum requirements: see How to use pyBDY 🧑‍🎓 for the minimum requirements.

{
  "dimension_map": {
    "t": "t",
    "z": "z",
    "y": "y",
    "x": "x"
  },
  "sc_variable_map": {
    "nav_lon": "nav_lon",
    "nav_lat": "nav_lat",
    "glamt": "glamt",
    "gphit": "gphit",
    "glamf": "glamf",
    "gphif": "gphif",
    "glamu": "glamu",
    "gphiu": "gphiu",
    "glamv": "glamv",
    "gphiv": "gphiv",
    "e1t": "e1t",
    "e2t": "e2t",
    "e1f": "e1f",
    "e2f": "e2f",
    "e1u": "e1u",
    "e2u": "e2u",
    "e1v": "e1v",
    "e2v": "e2v",
    "mbathy": "nav_lon",
    "gdept_0": "nav_lev",
    "gdept": "gdept",
    "gdepu": "gdepu",
    "gdepv": "gdepv",
    "gdepf": "gdepf",
    "gdepw": "gdepw",
    "gdepuw": "gdepuw",
    "gdepvw": "gdepvw",
    "e3t": "e3t",
    "e3w": "e3w",
    "e3u": "e3u",
    "e3v": "e3v",
    "e3f": "e3f",
    "e3uw": "e3uw",
    "e3vw": "e3vw",
    "e3fw": "e3fw"
  },
  "dst_variable_map": {
    "nav_lon": "nav_lon",
    "nav_lat": "nav_lat",
    "glamt": "glamt",
    "gphit": "gphit",
    "glamf": "glamf",
    "gphif": "gphif",
    "glamu": "glamu",
    "gphiu": "gphiu",
    "glamv": "glamv",
    "gphiv": "gphiv",
    "e1t": "e1t",
    "e2t": "e2t",
    "e1f": "e1f",
    "e2f": "e2f",
    "e1u": "e1u",
    "e2u": "e2u",
    "e1v": "e1v",
    "e2v": "e2v",
    "mbathy": "bottom_level",
    "gdept_0": "gdept_0",
    "gdept": "gdept",
    "gdepu": "gdepu",
    "gdepv": "gdepv",
    "gdepf": "gdepf",
    "gdepw": "gdepw",
    "gdepuw": "gdepuw",
    "gdepvw": "gdepvw",
    "e3t": "e3t_0",
    "e3w": "e3w_0",
    "e3u": "e3u_0",
    "e3v": "e3v_0",
    "e3f": "e3f_0",
    "e3uw": "e3uw_0",
    "e3vw": "e3vw_0",
    "e3fw": "e3fw"
  }
}

NcML File

This is an example NcML file which is used to providing file paths for parent (source) data that pybdy will read in. The example files name is src_data_local.ncml. Here the NcML file combines data on the T grid, U grid and V grid each along the time dimension then aggregating them together into a single virtual file

<ns0:netcdf xmlns:ns0="http://www.unidata.ucar.edu/namespaces/netcdf/ncml-2.2" title="aggregation example">
  <ns0:aggregation type="union">
    <ns0:netcdf location="/scratch/India_Test/mersea.grid_V.nc" />
    <ns0:netcdf location="/scratch/India_Test/mersea.grid_U.nc" />
    <ns0:netcdf location="/scratch/India_Test/mersea.grid_T.nc" />
  </ns0:aggregation>
</ns0:netcdf>

Tidal Boundary Conditions Generation

Back to top

By providing a global tidal model dataset (TPXO and FES are currently supported) pyBDY can generate boundary conditions for the NEMO configuration supplied using the namelist file.

Namelist options

To use the namelist needs to be configured with the required options. These are listed below:

ln_tide        = .true.              !  =T : produce bdy tidal conditions
sn_tide_model  = 'FES2014'           !  Name of tidal model. Accepts FES2014, TPXO7p2, or TPXO9v5
clname(1)      = 'M2'                !  constituent name
clname(2)      = 'S2'
clname(3)      = 'K2'
clname(4)      = 'O1'
clname(5)      = 'P1'
clname(6)      = 'Q1'
clname(7)      = 'M4'
ln_trans       = .true.              !  interpolate transport rather than velocities
! location of TPXO7.2 data
sn_tide_grid_7p2   = './inputs/tpxo7.2/grid_tpxo7.2.nc'
sn_tide_h          = './inputs/tpxo7.2/h_tpxo7.2.nc'
sn_tide_u          = './inputs/tpxo7.2/u_tpxo7.2.nc'
! location of TPXO9v5 data: single constituents per file
sn_tide_grid_9p5   = './inputs/TPXO9_atlas_v5_nc/grid_tpxo9_atlas_30_v5.nc'
sn_tide_dir        = './inputs/TPXO9_atlas_v5_nc/'
! location of FES2014 data
sn_tide_fes        = './inputs/FES2014/'

These options define the location of the tidal model datasets, note this differs depending on model as TPXO has all harmonic constants in one netcdf file whereas FES has three separate netcdf files (one for amplitude two for currents) for each constant. Extra harmonics can be appended to the clname(n) list. FES supports 34 constants and TPXO7.2 has 13 to choose from. Other versions of TPXO should work with pyBDY but have not been yet been tested. NOTE FES dataset filenames must have be in the format of constituent then type. e.g.:

M2_Z.nc (for amplitude)
M2_U.nc (for U component of velocity)
M2_V.nc (for V component of velocity)

If this is not undertaken the pyBDY will not recognise the files. TPXO data files are specified directly so these can be anyname although it is best to stick with the default names as shown above. So far the tidal model datasets have been downloaded and used locally but could also be stored on a THREDDS server although this has not been tested with the global tide models.

Other options include “ln_tide” a boolean that when set to true will generate tidal boundaries. “sn_tide_model” is a string that defines the model to use, currently only “fes” or “tpxo” are supported. “ln_trans” is a boolean that when set to true will interpolate transport rather than velocities.

Harmonic Output Checker

There is an harmonic output checker that can be utilised to check the output of pyBDY with a reference tide model. So far the only supported reference model is FES but TPXO will be added in the future. Any tidal output from pyBDY can be checked (e.g. FES and TPXO). While using the same model used as input to check output doesn’t improve accuracy, it does confirm that the output is within acceptable/expected limits of the nearest model reference point.

There are differences as pyBDY interpolates the harmonics and the tidal checker does not, so there can be some difference in the values particularly close to coastlines.

The checker can be enabled by editing the following in the relevent bdy file:

ln_tide_checker = .true.                ! run tide checker on pyBDY tide output
sn_ref_model    = 'fes'                 ! which model to check output against (FES only)

The boolean determines if to run the checker or not, this takes place after creating the interpolated harmonics and writing them to disk. The string denotes which tide model to use as reference, so far only FES is supported. The string denoting model is not strictly needed, by default fes is used.

The checker will output information regarding the checking to the NRCT log, and also write an spreadsheet to the output folder containing any exceedance values, the closest reference model value and their locations. Amplitude and phase are checked independently, so both have latitude and longitude associated with them. It is also useful to know the amplitude of a exceeded phase to see how much impact it will have so this is also written to the spreadsheet. An example output is shown below, as can be seen the majority of the amplitudes, both the two amplitudes exceedances and the ones associated with the phase exceedances are low (~0.01), so can most likely be ignored. There a few phase exceedances that have higher amplitudes (~0.2) which would potentially require further investigation. A common reason for such an exceedance is due to coastlines and the relevant point being further away from an FES data point.

The actual thresholds for both amplitude and phase are based on the amplitude of the output or reference, this is due to different tolerances based on the amplitude. e.g. high amplitudes should have lower percentage differences to the FES reference, than lower ones simply due to the absolute amount of the ampltiude itself, e.g. a 0.1 m difference for a 1.0 m amplitude is acceptable but not for a 0.01 m amplitude. The smaller amplitudes contribute less to the overall tide height so larger percentage differences are acceptable. The same also applies to phases, where large amplitude phases have little room for differences but at lower amplitudes this is less critical so a higher threshold is tolerated.

The following power functions are used to determine what threshold to apply based on the reference model amplitude.

Amplitude Threshold

Percentage Exceedance = 26.933 * Reference Amplitude ^ -0.396’

Phases Threshold

Phase Exceedance = 5.052 * pyBDY Amplitude ^ -0.60

Troubleshooting

Back to top

Always check the pyBDY log file. This is usually saved in the working directory of pyBDY as nrct.log. It gives helpful information which may help to diagnose issues. E.g. ValueErrors that are result of a THREDDS server being down and unable to provide data files.

If you get the error message "Destination touches source i-edge but source is not cylindrical" or you get the error message "Destination touches source j-edge but North Fold is not implemented". There is a plot you can uncomment in pybdy.nemo_bdy_chunk.chunk_bdy() that will show you where pyBDY is attempting to place bdy points.

For "Destination touches source i-edge but source is not cylindrical", you may have an open boundary in your mask or bathymetry file that is not inside the domain of the source data. If this is the case you need to edit your mask to be land (i.e. zeros) to block the incorrect open boundary.
For "Destination touches source j-edge but North Fold is not implemented", your domain probably touches the Arctic North Fold and pyBDY is trying to put an open boundary there. If this is the case you need to edit your mask to be land (i.e. zeros) to block the incorrect open boundary along the north edge of the domain. Do not attept to have a regional model with a boundary crossing the North Fold, this has not be implemented yet.

Check your variable and dimension names match the requirements and are mapped correctly either in the NcML file or JSON for the source data and grid data respectively (see section How to use pyBDY 🧑‍🎓 )

If you have time interpolation problems read the section Time Settings.

pyBDY Module Structure

Back to top

All the classes, methods and functions in pyBDY can be found in the tab along the top of the page.

pyBDY Documentation

Introduction

Contents

How to cite

Change Log

Dependencies

Quick Start Installation

How to use pyBDY

Step 1: File Preparation

Step 2: Edit the Namelist namelist_local.bdy

Key Namelist Parameters

File Paths

Other Settings

Time Settings

Required Namelist Time Parameters

Step 3: Setting up the NcML file

Step 4: Setting up the JSON file

Step 5: Running pyBDY

Worked Example

Namelist File

JSON File

NcML File

Tidal Boundary Conditions Generation

Namelist options

Harmonic Output Checker

Amplitude Threshold

Phases Threshold

Troubleshooting

pyBDY Module Structure

Step 2: Edit the Namelist `namelist_local.bdy`
